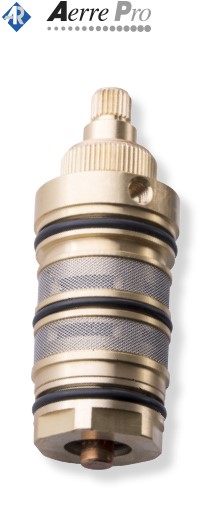

Thermostatic cartridge Ø 34
Product features
Mixing angle 330°.
Locking system w/radial set screw (4 Nm) (36 lbf-in) or fixing ring nut (12 Nm) (100 lbf-in).
Integrated stainless steel filters.
Safety system in the absence of cold water.
Designed for installation with:
-Instantaneous water heaters
-gas water heaters
-centralized systems
Performances and safety features comply EN1111 specifications.
Optionals
Customizable stem. Adjustable hot limit stop.
Factory settings
All thermostatic cartridge are calibrated at the factory at 38°C +/-1 (100°F +/-1) and temperature differential of 50°C (122°F) at 3 bar (43.5 psi) pressure.
With different hydraulic parameters, a new calibration may be necessary on place.
